Comfort is provided by high-quality upholstered seats and the adjustable foot control allows even a tall pilot to hide his knees behind the wind shield. The structure is made of duralumin tubes D16T supplemented with welded steel parts ensuring high strength and flexibility. The three-wheeler design is composed of laminated covers. The slim three-wheeler design results in low frontal resistance and the large lateral surface behind the centre of gravity, along with the direction indicators on the wheel guards, ensures excellent directional stability and pleasant cornering behaviour. Motorization according to customer's requirements with Rotax or Hirth engines from 50 to 100 HP. The single-seater version Joker Mono is of the same structure as of the two-seater structure. The low weight of the three-wheeler using a suitable engine ranks it in the microlight category.

Comfort in the three-wheeler

High-quality upholstered seats and adjustable foot control allowseven a tall pilot to hide his knees behind the wind shield.

Three-wheeler weigh

The structure of duralumin tubes of D16T quality supplemented with welded steel parts; the laminated covers provide the three-wheeler without engine, instruments and rescue system the weight of 71 Kg.

Aerodynamics

The three-wheeler is slim, stretched to length, resulting in low frontal resistance.

The large side area of the rear section, along with the direction indicators on the wheel guards, provide the three-wheeler with excellent directional stability and pleasant cornering behaviour.

Joker Trike Mono (1-seater version)

The single-seater version Joker Mono is of the same structure as of the two-seater structure.
The low weight of the three-wheeler using a suitable engine ranks it in the microlight category.

Weight of the trike including engine is 61 kg and can be used with Aeros Discus, Fox T or Combat wings

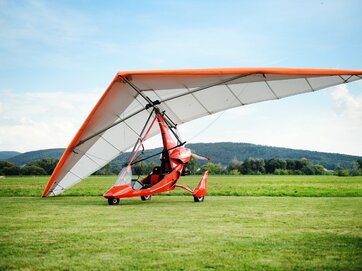

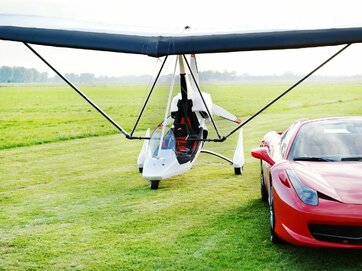

Basic information on the three-wheeler Joker

The three-wheelers Joker provide superior connection of aerodynamics,functionality, comfort and modern design.

Perfect seating

Comfort is provided by high-quality upholstered seats and the adjustable foot control allows even a tall pilot to hide his knees behind the wind shield.

High strength and flexibility

The structure is made of duralumin tubes D16T supplemented with welded steel parts ensures high strength and flexibility. The three-wheeler design is composed of laminated covers. The slim three-wheeler design results in low frontal resistance and the large lateral surface behind the centre of gravity, along with the direction indicators on the wheel guards, ensures excellent directional stability and pleasant cornering behaviour.

Our three-wheelers can be combined with any Aeros wings.
Motorization according to customer's requirements with Rotax or Hirth engines.

Trojkolka
EnginesRotax582 Rotax912 Rotax912S
Power, HP64 80 100
Max. weight, Kg450450450
Empty weight, Kg210.5 229.5 234.5
Payload (incl. fuel), Kg262 243 238
Tank capacity, l53 53 53
Wing surface, m214.514.514.5
Length of getting-off the ground, m80 70 60
Run-down, m80 70 70
Gliding ratio (90 km/h)666
Cruise speed, km/h90 90 90
VNE, km/h 130 130 130
Minimum speed, km/h52 52 52
Ascension, m/c (450 Kg)4 5 6
Fuel consumption at 80 %, l14 12 12
Service limit, (mth)3500 3500 3500
Max. overloading, G4g/-2g 4g/-2g 4g/-2g

The price of the three-wheeler depends on the engine and other equipment used.

engine:

Rotax 503

Rotax 582

Rotax 912

instruments:

digital

analog

foot control:

adjustable

customized (fixed)

gas control:

foot

foot and manual

manual on horizontal bar

breakes:

foot

foot/parking

rescue system

electric centre of gravity control

floats
